Basic Manual of VirtualDub-MPEG2 Super (decoder MOD), or like going from MOD to AVI or VOB

This article is an extension of another article titled How to pass MOD (or VOB) files to AVI in video cameras JVC and others like it and speaks of "VirtualDub-MPEG2" NO TALKING THE ORIGINAL software VirtualDub.

The MOD or VOB files coming from digital video cameras and use the MPEG2 codec to compress images. The name of mod or VOB depends on the camera model and brand. When speaking of the MOD files in this article also applies to VOB files and vice versa. The MOI files for practical purposes are useless, internally have the same information as the head of the MOD, as the date on which the video was made, formatting and stuff.

The "Virtual-Dub-MPG2" program is a variant of "VirtualDub" program and is used to pass VOB or MOD files to AVI format. Although to move from other formats to AVI (minus the MOD and VOB files) is much better the original VirtualDub because it is more current. The original web is www.virtualdub.org/download.html .
Here are the steps to follow:

1. DOWNLOAD THE VirtuaDub-MPEG2

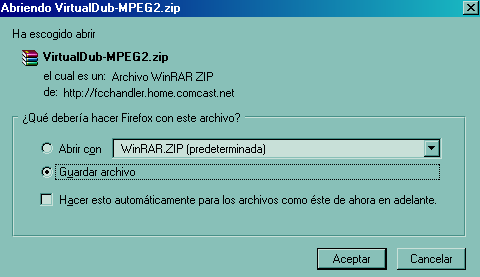

When you click on the link below, if you get to choose between "Open with ..." and "Save File" choose "SAVE FILE". If you wonder where it will record, tell the Desktop.

• Original Web: http://fcchandler.home.comcast.net/~fcchandler/stable/VirtualDub-MPEG2.zip.
• Copy disappears if the above link: JVC MOD files MPEG2 decoder .

2. Unzip the file ZIP

Once you have downloaded the ZIP file (on the desktop), put the mouse pointer over the file, please click the right mouse button in the floating menu and choose "Open with ..." -> "Compressed Folders (zipped) "[see photo below].

If this option called "compressed folders (zipped)" NO appears, utilizad the program (free) 7Zip:

• http://www.7-zip.org/download.html (if you have no idea that there 7Z file download and use Windows, choose the ".exe", 32 bits and above THAN BETA file).
• Once lowered'll have to find life because section 2 varies slightly, but the rest is all the same (ie, install the 7zip program and to decompress, select the option from the popup menu that says "7-zip-> Extract files ").

If this option is YES, continue to the next step.
Once the ZIP file is open, click on "File" -> "Extract All".

And you give to all buttons appear that say "Yes", "OK" or "Finish".

3. RUN THE PROGRAM

Look for the file called "VirtualDub.exe" or "VirtualDub" (the one with the gray dibujito). Do double Clicon the left mouse button. Look at the picture on the right.
In case when the program starts, the audio errors appear, ye shall have to get off the "decoder AC3". The MOD files have the audio encoded in AC3 format and thus setting in your PC need the codec for AC3 format.

• Original Web: http://fcchandler.home.comcast.net/~fcchandler/AC3ACM/AC3ACM.zip
• Copying, we have a copy of the file if it goes above link: AC3 ACM decoder for JVC MOD files and VirtualDub-MPEG2

4- INITIAL SAFETY MESSAGE

Leave a message saying that the program comes from the Internet and such, you can allow the user to "run" smoothly.

5- SET "VIDEO" VirtualDub-MPEG2

With the program open the file you want to convert MOD to AVI (files as "" MOV001.VOB "", "MOV002.VOB", etc) for this must go to the "File" option (Archive) must be opened and choose the "Open video file" (open video file) option.
Now let's configure the program so that the film is recorded in XviD format (for normal and dark movies) or DivX (for normal or very clear movies). These two formats are the most "famous" video player available, but if in doubt choose XviD, which is the most compatible.

a) -. Go to the "Video" and chose "Full processing mode".

b) -. Now go back to click "Video" and choose "Compression ..."

c.) - a list appears. Look at the list of video codec called "XviD MPEG-4 Codec" (see photo) or a similar name that says "XviD".

Once chosen codec, click the "OK" button.

Hands off DEFAULT CONFIGURATION (the "Configure" button), and what you do when you be a program experts.

If the XviD does not appear, look for the codec called "DivX" or similar.

If it still appears neither, it is because you have to install them,. In this case get off the " K-Lite Mega codec pack "( www.codecguide.com/download_mega.htm ) version called "MEGA".

K-Lite is considered the best collection of codecs. For who do not know, the codecs (to oversimplify) are "auxiliary programitas" that allow your viewer videos or music, "understand" formats for those who have not been scheduled. For example the "Xvid codec" allows your operating system "understand" and display Xvid movies with any "player" like BSPlayer, Windows Media, etc.). The word "codec" comes from "Encode Decode".

d) .- Finally, add a filter to prevent an ugly effect occurs with digital cameras, "interlacing" appears.

Go to the "Video" option -> filters -> Add -> Select the "deinterlace" -> ok -> ok

Video cameras recorded the even lines of the image and then the odd lines, so in the videos a "stripes" appear. In the following two images look you in the first photo. The left frame of the window, listed as "serrated" as if, instead of a straight frame, it was like sawteeth. This is called "interlaced image" (interlaced image).

This is the final result of the image before and after applying the filter "interlacing" (deinterlace):

6- SET "SOUND" VirtualDub

Now we have to configure the audio codec, so that our film has audio in MP3 (the most compatible with all electronics) format:

• Option "Audio" -> "Full processing mode"
• > "Compression" - again, "Audio" option
• Choose "Lame MP3" and choose "48000Hz, 192 Kbps, CBR, stereo, 24 KB / s" option. If you do not stop, take a smaller value as 160 Kbps or 128 Kbps (less than 128 better than not) but overall it CBR (much more compatible than ABR).

Do not put more than 192 Kbps because only your dogs will appreciate the courtesy and also the final video will take much more. There is no difference between "48000Hz" and "44000Hz" (to a human), so if you choose to 44000Hz you will come out a little smaller output file.

If you are not the codec "Lame MP3", you have to choose another alternative as the codec "MPEG Layer-3", with the highest options that you can (eg 56Kb / s, 24,000 Hz). If not find it, get off the "k-lite mega codec pack" mentioned in point 5.

7- A RECORD FILE MOD AVI

This is the final step, go to the "File" (File) and "Save as AVI" option (saved as AVI).

And everything is done. After a while, you will have the brand new video AVI, compatible with XviD and MP3 codecs.
